Ceramic Inserts RNGN,RCGX, CNGA and more
Premium SiC whisker-reinforced Ceramic Inserts are engineered for high-speed machining of superalloys, hardened steels and cast iron. The addition of silicon carbide (SiC) provides exceptional hardness—second only to diamond—while optimizing toughness and fracture resistance. Different ceramic grades deliver excellent flank wear, groove wear and thermal shock resistance for finishing, semi-finishing, continuous and light interrupted cutting. A wide range of RNGN, RCGX, CNGA, CNGX, DNGA, RPGX and other insert geometries and sizes is available to match different machining requirements.
1. Premium SiC whisker-reinforced ceramic
2. Exceptional hardness and fracture toughness
3. Excellent flank and groove wear resistance
4. Strong thermal shock resistance
5. Suitable for high-speed machining
6. Ideal for superalloys, hardened steel and cast iron
7. Multiple grades for finishing and semi-finishing
8. Wide range of insert shapes and sizes available
Get Free Quote
Specification
| IOS/ANSI | IC | T |
| RNGN 0903/RNGN 32 | 9.525/3/8″ | 3.18/1/8″ |
| RNGN 0904/RNGN 33 | 9.525/3/8″ | 4.76/3/16″ |
| RNGN 1204/RNGN 43 | 12.7/1/2″ | 4.76/3/16″ |
| RNGN 1207/RNGN 45 | 12.7/1/2″ | 7.94/5/16″ |
| IOS/ANSI | IC | T |
| RNGN 1507/RNGN 55 | 15.875/5/8″ | 7.94/5/16″ |
| RNGN 1907/RNGN 65 | 19.05/3/4″ | 7.94/5/16″ |
| RNGN 2507/RNGN 85 | 25.4/1″ | 7.94/5/16″ |
| RNGN 2509/RNGN 86 | 25.4/1″ | 9.525/3/8″ |
| IOS/ANSI | IC | θ |

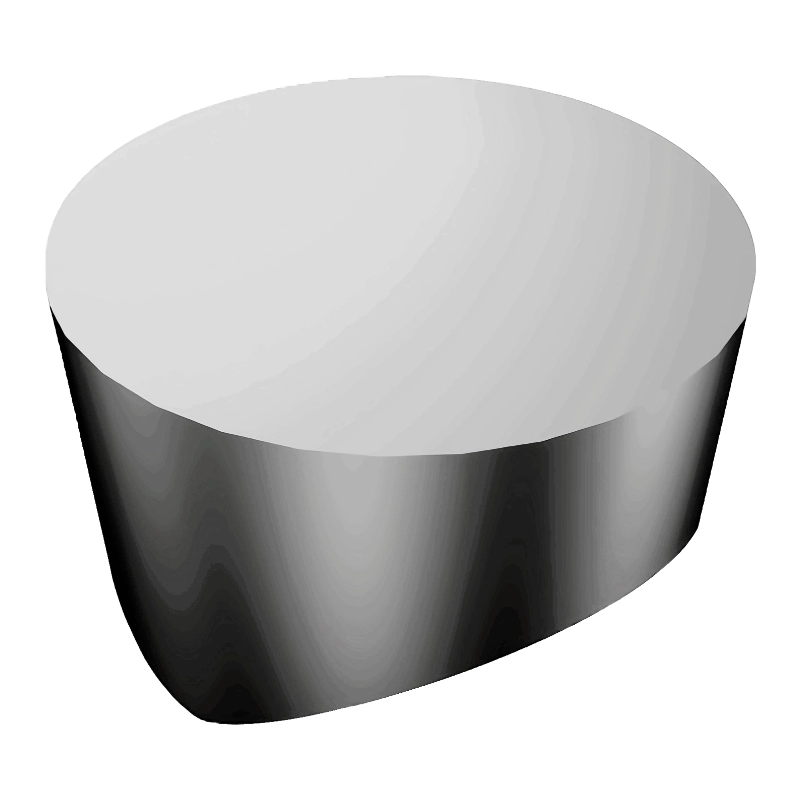

| RCGX 0604/RCGX23 | 6.35/1/4″ | 120° |
| RCGX 0606/RCGX24 | 6.35/1/4″ | 120° |
| RCGX 0907/RCGX 35 | 9.525/3/8″ | 120° |
| RCGX 1207/RCGX45 | 12.7/1/2″ | 120° |
| RCGX 106/RCGX106 | 19.05/3/4” | 120° |
| IOS/ANSI | IC | θ |
| RCGX 102/RCGX 102 | 6.35/1/4″ | 120° |
| RCGX 103/RCGX 103 | 9.525/3/8″ | 120° |
| RCGX 104/RCGX 104 | 12.7/1/2″ | 120° |
| RCGX 105/RCGX 105 | 15.87/5/8” | 120° |
| RCGX 108/RCGX108 | 25.4/1″ | 140° |
| IOS/ANSI | IC | T |

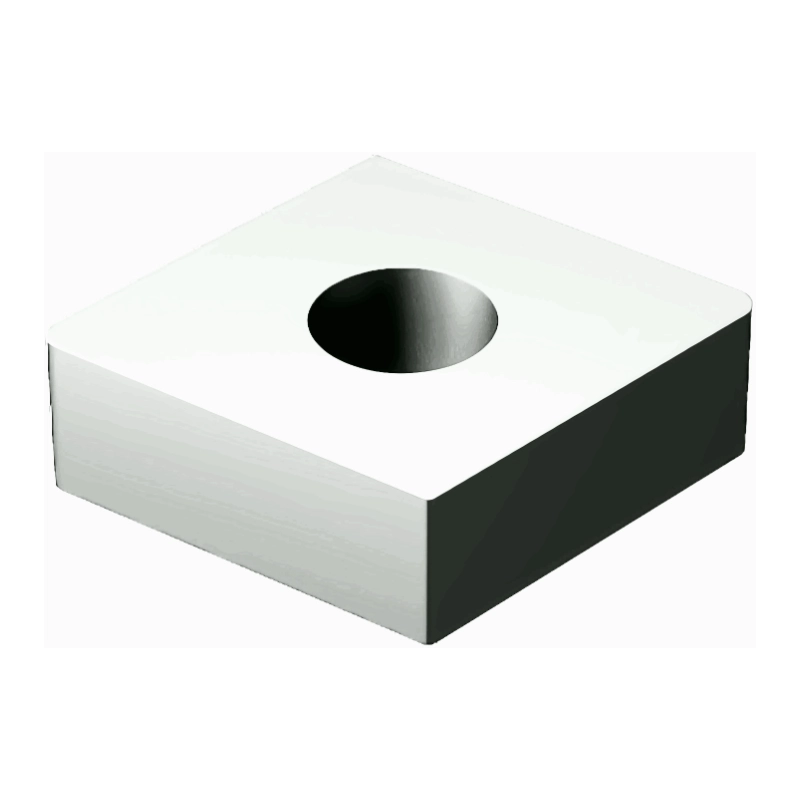

| CNGA 1204/CNGA 43 | 12.7/1/2″ | 4.76/3/16″ |
| CNGA 1606/CNGA54 | 15.875/5/8″ | 6.35/1/4″ |
| CNGA 1906/CNGA64 | 19.05/3/4″ | 6.35/1/4″ |
| CNGX 1207/CNGX 45 | 12.7/1/2″ | 7.94/5/16″ |

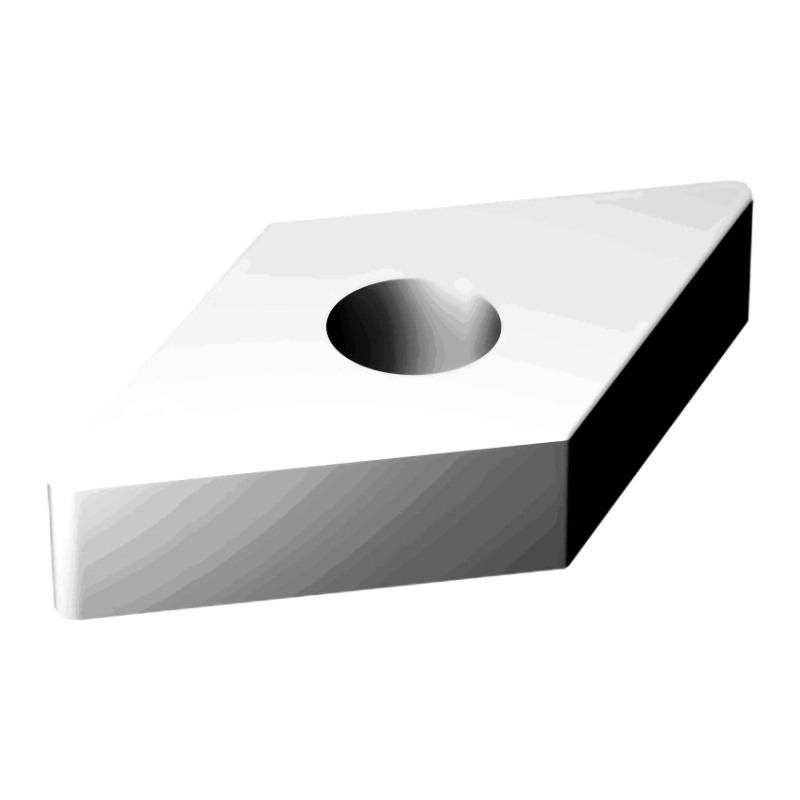

| DNGA 1504/DNGA 43 | 12.7/1/2″ | 4.76/3/16″ |
| IOS/ANSI | IC | θ |
| RPGX 0604/RPGX 23 | 6.35/1/4″ | 120° |
| RPGX 0907/RPGX 35 | 9.525/3/8″ | 120° |
| RPGX 1207/RPGX 45 | 12.7/1/2″ | 120° |
Application and Advantages:
| ISO | Material Characteristics | Application Range |
| S10 | Superior Flank Wear Resistance and Groove Wear Resistance in High-Speed Machining | Machining of Super alloys,High-Hardness Steels,and Cast Iron. |
| S25 | Superior Flank Wear Resistance and Groove Wear Resistance in High-Speed Machining | High-Speed Machining of Nickel-Based,Coball-Based Alloys,Cast iron and High-Hardness Steels in Continuous or Light Cutting |
| K10,H10 | Outstanding Wear Resistance and Thermal Shock Resistance | Finishing of Cast Iron and Hardened Steel |
| K20,H20 | Outstanding Wear Resistance and Thermal Shock Resistance | Semi-Finishing of Cast Iron and Hardened Steel |
| K05,H05 | Outstanding Wear Resistance and Thermal Shock Resistance | Suitable for High-Speed Continuous Machining of Cast Iron, Hardened Steel,and High-Temperature Alloys |
| K10,H10 | Outstanding Wear Resistance and Thermal Shock Resistance | Suitable for High-Speed Continuous or Light Intermittent Machining of Cast tron,Hardened Steel,and High-Temperature Alloys |
FAQs
Q1:How to select the right insert?
A:5 key points you need to know when choose the right tool
- Workpiece material and hardness
- Machining operation (roughing, finishing, etc.)
- Desired surface quality
- Cutting conditions (Vc, feed, depth of cut)
- Current insert grade and geometry
