Positive Inserts Lathe Tools
DCGT N10 uncoated turning inserts are specially designed for aluminum and non-ferrous metal finishing. Ground by high-precision imported machines with G tolerance ±0.025mm, sharp cutting edge and anti-built-up edge geometry reduce cutting resistance. Multiple corner radii suit roughing, semi-finishing and finishing of aluminum, copper, plastic and wood. A full lineup of matching turning & milling inserts is supplied, including dedicated solutions for auto wheel machining. A 5-point selection guide and professional tool consultation are available.
1. N10 grade for non-ferrous metal finishing
2. G level tight tolerance ±0.025mm
3. Ultra-sharp ground cutting edge
4. Special geometry avoids built-up edge
5. Low cutting force & superior surface finish
6. Multiple radii fit rough to finish turning
7. Matched full range aluminum cutting inserts
8. Custom solution for automotive wheel machining
9. Professional tool matching technical support
Get Free Quote
Specification
| Type | Dimension（mm） | ||||
| ΦI.C | S | Φd | R | α | |

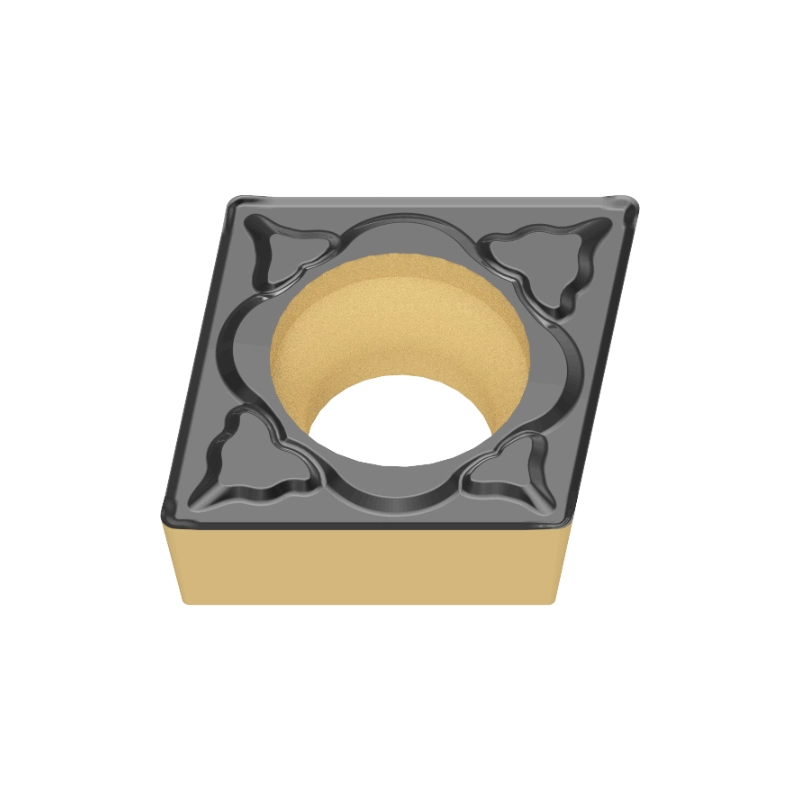

| CCMT060202 | 6.35 | 2.38 | 2.8 | 0.2 | 7° |
| CCMT060204 | 6.35 | 2.38 | 2.8 | 0.4 | 7° |
| CCMT060208 | 6.35 | 2.38 | 2.8 | 0.4 | 7° |
| CCMT09T302 | 9.525 | 3.97 | 4.4 | 0.2 | 7° |
| CCMT09T304 | 9.525 | 3.97 | 4.4 | 0.4 | 7° |
| CCMT09T308 | 9.525 | 3.97 | 4.4 | 0.8 | 7° |
| CCMT120404 | 12.7 | 4.76 | 5.5 | 0.4 | 7° |
| CCMT120408 | 12.7 | 4.76 | 5.5 | 0.4 | 7° |
Other positive turning inserts
| Type | Dimension（mm） | ||||
| ΦI.C | S | Φd | R | α | |
| DCMT70202 | 6.35 | 2.38 | 2.8 | 0.2 | 7° |
| DCMT70204 | 6.35 | 2.38 | 2.8 | 0.4 | 7° |
| DCMT11T302 | 9.525 | 3.97 | 4.4 | 0.2 | 7° |
| DCMT11T304 | 9.525 | 3.97 | 4.4 | 0.4 | 7° |
| DCMT11T308 | 9.525 | 3.97 | 4.4 | 0.8 | 7° |
| SCMT09T304 | 9.525 | 3.18 | 4.4 | 0.4 | 7° |
| SCMT09T308 | 9.525 | 3.18 | 4.4 | 0.8 | 7° |
| TCMT60204 | 6.35 | 2.38 | 2.8 | 0.4 | 7° |
| TCMT60208 | 6.35 | 2.38 | 2.8 | 0.4 | 7° |
| TCMT09T302 | 9.525 | 3.97 | 4.4 | 0.2 | 7° |
| TCMT09T304 | 9.525 | 3.97 | 4.4 | 0.4 | 7° |
| TCMT16T304 | 9.525 | 3.97 | 4.4 | 0.4 | 7° |
| TCMT16T308 | 9.525 | 3.97 | 4.4 | 0.4 | 7° |
| VBMT160404 | 9.525 | 4.76 | 4.4 | 0.4 | 5° |
| VBMT160408 | 9.525 | 4.76 | 4.4 | 0.8 | 5° |
| VCMT160404 | 9.525 | 4.76 | 4.4 | 0.4 | 5° |
| VCMT160408 | 9.525 | 4.76 | 4.4 | 0.8 | 5° |
Application and Advantages:
- Complete specifications, meet your different needs
- Cover 99% of turning requirements, choose different model specifications according to different turning needsThe unique chip – breaking groove shape of the blade ensures good chip removal eff
FAQs
Q1:How to select the right insert?
A:5 key points you need to know when choose the right tool
- Workpiece material and hardness
- Machining operation (roughing, finishing, etc.)
- Desired surface quality
- Cutting conditions (Vc, feed, depth of cut)
- Current insert grade and geometry
Need Solutions？
Every metalworking project has unique requirements. Welcome to consulting with a tooling expert from us to choose the perfect tools for you！
