Threading inserts
Full series threading inserts support ISO, UN, NPT, BSPT, TR and other global thread standards with multiple IC sizes and pitches. TiN & TiAlN coated substrates deliver sharp edge, high thread precision, low cutting resistance and smooth chip evacuation. They machine steel, stainless steel and cast iron at regular & high cutting speeds. Matching alloy spring steel threading tool holders boost efficiency & tool life by 30%-50%, with strict inspection cutting defect rate by 80%. Widely used in aerospace, auto parts and precision CNC machining, professional tool selection consultation is available.
1. Covers all mainstream international thread standards
2. TiN/TiAlN composite wear-resistant coating
3. Sharp edge, high thread profile precision
4. Low cutting force & smooth chip removal
5. Fits steel, stainless steel & cast iron machining
6. High-speed grade for forged stainless steel
7. Full range matched alloy spring steel holders
8. 30%-50% longer life with original tool holders
9. Strict inspection reduces defect rate by 80%

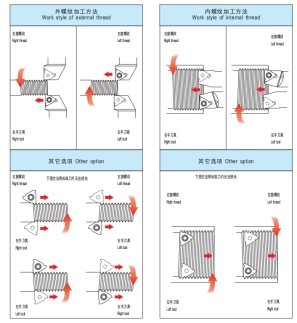

10. Suitable for internal & external left/right threads
Get Free Quote
Specifications
| Inside circle I.C | Pitch | Type | Dimension | ||
| MM | L | X | Y | ||
| 6.35 | 0.5 | 11ER/L0.50 ISO | 11 | 0.6 | 0.6 |
| 0.75 | 11ER/L0.75 ISO | 11 | 0.6 | 0.6 | |
| 1 | 11ER/L1.00 ISO | 11 | 0.7 | 0.7 | |
| 1.25 | 11ER/L1.25 ISO | 11 | 0.8 | 0.9 | |
| 1.5 | 11ER/L1.50 ISO | 11 | 0.8 | 1.0 | |
| 1.75 | 11ER/L1.75 ISO | 11 | 0.8 | 1.1 | |
| 9.525 | 0.5 | 16ER/L0.50 ISO | 16 | 0.6 | 0.6 |
| 0.75 | 16ER/L0.75 ISO | 16 | 0.6 | 0.6 | |
| 1 | 16ER/L1.00 ISO | 16 | 0.7 | 0.7 | |
| 1.25 | 16ER/L1.25 ISO | 16 | 0.8 | 0.9 | |
| 1.5 | 16ER/L1.50 ISO | 16 | 0.8 | 1.0 | |
| 1.75 | 16ER/L1.75 ISO | 16 | 0.9 | 1.2 | |
| 2 | 16ER/L2.00 ISO | 16 | 1.0 | 1.3 | |
| 2.5 | 16ER/L2.50 ISO | 16 | 1.1 | 1.5 | |
| 3 | 16ER/L3.00 ISO | 16 | 1.2 | 1.6 | |
| 12.7 | 3.5 | 22ER/L3.50 ISO | 22 | 1.6 | 2.3 |
| 4 | 22ER/L4.00 ISO | 22 | 1.6 | 2.3 | |
| 4.5 | 22ER/L4.50 ISO | 22 | 1.7 | 2.4 | |
| 5 | 22ER/L5.00 ISO | 22 | 1.7 | 2.5 | |
| 15.875 | 5.5 | 27ER/L5.50 ISO | 27.5 | 1.9 | 2.7 |
| Inside circle I.C | Pitch | Type | Dimension | ||||
| MM | TPI | L | X | Y | T | ||
| 4.86 | 0.5~1.5 | 48~16 | 08IR/L A60 | 8 | 0.6 | 0.7 | 2.20 |
| 6.35 | 0.5~1.5 | 48~16 | 11IR/L A60 | 11 | 0.8 | 0.9 | 3.20 |
| 9.525 | 0.5~1.5 | 48~16 | 16IR/L A60 | 16 | 0.8 | 0.9 | 3.65 |
| 0.5~3.0 | 48~8 | 16IR/L AG60 | 16 | 1.2 | 1.7 | 3.65 | |
| 1.75~3.0 | 14~8 | 16IR/L G60 | 16 | 1.2 | 1.7 | 3.65 | |
| 15.875 | 5.5~6.0 | 4.5~4 | 27IR/L Q60 | 27 | 1.8 | 2.7 | 6.35 |
| 15.875 | 6.0~10 | 4~2.5 | 27VIR V60 | 27 | 0.6 | 5.2 | 8.70 |
Full line threading inserts are available.
| Full line threading inserts as below: | |
| Standard | Meaning |
| A60 and AG60 | 60°Partial Profile 60° |
| 55 | 55°Partial Profile 55° |
| ISO | ISO metric |
| UN | American UN |
| NPT | 60°NPT |
| NPTF | 60°NPTF |
| BSPT | 55°British Standard Pipe Thread |
| ACME | 29°American ACME |
| UNJ | Aemrican Stub ACME |
| MJ | Metric AerospaceISO5855 |
| TR | (DIN103)Trapeze |
| ABUT | American Buttress |
| SAGE | Metric Buttress |
| RD | Round(DIN405)Round(DIN405) |
| API | American Petroleum Pipe Thread |
Application：
- Processing materials: stainless steel, steel parts, cast iron, highly versatile
- Reference speed: Vc40-120m/min
- Universal (high-speed): high-speed cutting of stainless steel, steel parts, and cast iron
- Especially for the processing of forged stainless steel and stainless iron
- Reference speed: Vc80-160m/min
Compatible holders
The performance of a threading inserts with a high quality tool holder can increase 30-50%, and lifetime can be increased also 30-50%.
The blade holder adopts high-quality alloy spring steel
Craftsmanship with ingenuity and multiple quenching to ensure excellent rigidity and durability-Not every factory are so respect the importance of the holder.
Our tools are 100% inspected and tested with mass cased, this internal thread tool cuts Defect Rate by 80%.
| Type | Avallable inserts | DimenSNons | Screw | Torx Key | ||||||
| D | D1 | L | L1 | F | Dmin | |||||
| Right hand | Lefthand | |||||||||
| SNR000BK08 | SNLO008K08 | 08IR/L…. | 8 | 7 | 125 | 20 | 5.50 | 9.90 | M2.5*5 | T6 |
| SNR0010K¹1 | SNL0010K11 | 11R/L…. | 10 | 9 | 125 | 25 | 7.30 | 13 | M2.5*5 | T8 |
| SNR0012K11 | SNL0012K11 | 12 | 11 | 125 | 28 | 8.40 | 15 | |||
| SNR0013M16 | SNL0013M16 | 13 | 15 | 150 | 32 | 10.20 | 17 | M3.5*9 | T15 | |
| SNR0016Q16 | SNL0016Q16 | 16 | 15 | 180 | 40 | 11.5 | 20 | |||
| SNR0020Q16 | SNL0020Q16 | 16IR/L…. | 20 | 20 | 180 | 13.70 | 40 | M3.5*12 | ||
| SNR0025R16 | SNL0025R16 | 25 | 25 | 200 | 16.20 | 45 | ||||
| SNRD032S16 | SNL0032516 | 32 | 32 | 250 | 19.70 | 50 | ||||
| SNR0040T16 | SNL0040T16 | 40 | 400 | 300 | 23.70 | 55 | ||||
| SNRO050U16 | SNL0050U16 | 50 | 50 | 350 | 28.70 | 60 | ||||
| SNR0020Q22 | SNL0020Q22 | 22R/L… | 20 | 20 | 180 | 15.60 | 24 | M4*16 | T20 | |
| SNR0025R22 | SNL0025R22 | 25 | 25 | 200 | 18.10 | 29 | ||||
| SNR0032S22 | SNL0032522 | 32 | 32 | 250 | 21.60 | 38 | ||||
| SNR0040T22 | SNL0040T22 | 40 | 40 | 300 | 25.60 | 46 | ||||
| SNRD050U22 | SNL0050U22 | 50 | 50 | 350 | 30.60 | 56 | ||||
| SNRO032S27 | SNL0032527 | 27IR/L…. | 32 | 32 | 250 | 22.60 | 40 | M5*20 | T20 | |
| SNR0040T27 | SNL0040T27 | 40 | 40 | 300 | 26.60 | 48 | ||||
And more.
