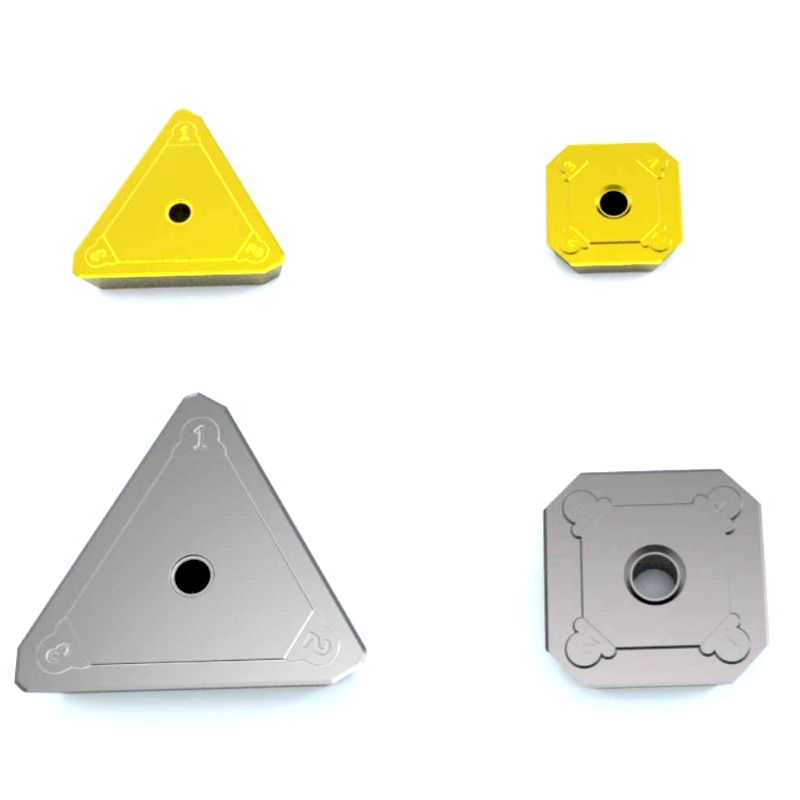

TPKN Face milling insert
SOMT square face milling inserts feature 4 cutting edges for cost efficiency, with complete sizes and corner radii. Special clamping design boosts rigidity & positioning accuracy; optimized chip groove delivers smooth cutting and chip evacuation. Two yellow PVD coated grades P20 and P20A are available. P20A adopts ultra-fine TiAlN nano coating with rare elements for superior heat & wear resistance, while P20 suits semi-finishing & finishing of stainless steel. They perform well on steel, stainless steel, cast iron and light interrupted cuts. A 5-point selection guide and professional tool consultation are offered.
1. 4 cutting edges for cost-efficient milling
2. Reinforced clamping for high positioning accuracy
3. Optimized groove for smooth chip removal
4. Two premium yellow PVD coating grades
5. P20A nano coating: wear & heat resistant
6. Sharp edge with stress-free pre-coating treatment
7. Balanced hardness and substrate toughness
8. Ideal for stainless steel semi/finishing
9. Stable performance on light interrupted cuts
10. Customized professional tool matching support
Get Free Quote
Specification

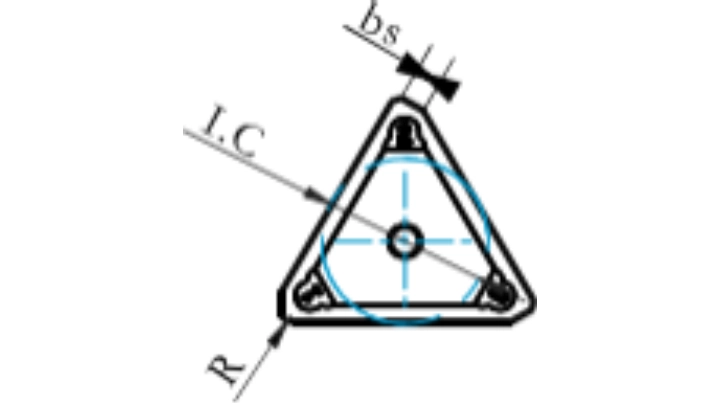

| Type | Internal circle DiameterI.C | bs | ThicknessS | Hole Diameter | RadiusR |
| TPKN1603PDSR | 9.525 | 1.9 | 3.18 | 2.6 | 0.6 |
| TPKN2204PDSR | 12.7 | 2.4 | 4.76 | 2.6 | 0.6 |
| SPKN1203EDSR | 12.7 | 2 | 3.18 | 2.6 | 1.2 |
| SPKN1504EDSR | 15.875 | 2.5 | 4.76 | 2.6 | 1.2 |
| SDKN1203AESN | 12.7 | 2 | 3.18 | 2.6 | |
| SDKN1504AESN | 15.875 | 2.1 | 4.76 | 2.6 |
Recommended cutting condition
| Workpiece material | cutting condition | ||||
| Vc（m/min） | Fz（mm/t） | Ap（ mm） | Available insets | ||
| P | Carbon steel | 120-270 | 0.2-0.5 | 5.5 | SPKN12/SDKN12/TPKN16 |
| 7.5 | SPKN15/SDKN15//TPKN22 | ||||
| Alloy steel | 100-240 | 0.2-0.4 | 5.5 | SPKN12/SDKN12/TPKN16 | |
| 7.5 | SPKN15/SDKN15//TPKN22 | ||||
| K | Grey cast iron | 80-220 | 0.2-0.5 | 5.5 | SPKN12/SDKN12/TPKN16 |
| 7.5 | SPKN15/SDKN15//TPKN22 | ||||
| Nodular cast iron | 80-200 | 0.2-0.4 | 5.5 | SPKN12/SDKN12/TPKN16 | |
| 7.5 | SPKN15/SDKN15//TPKN22 | ||||
Automotive manufacturing,
General tool and die making, contributing to the creation of high – quality products across different sectors.
Processing case:
- Work piece: Machine tool components/ material: ZG20MN
- Workpiece Hardness: 180-220HB
- Type of inserts: TPKN2204PDSR P20
- Cutting parameters: Vc： 168m/min，Fz：0.3mm，Ap：2.5mm
Test result:
- Some famous Brand lifetime is 40minutes per insert
- Our inserts: 50 minutes per insert
Our face milling TPKN performance is 25% longer lifetime. Save time and improve efficiency for enduser by 25% , save inserts cost by 15%.
FAQs
Q1:How to select the right insert?
–5 key points you need to know when choose the right tool
- Workpiece material and hardness
- Machining operation (roughing, finishing, etc.)
- Desired surface quality
- Cutting conditions (Vc, feed, depth of cut)
- Current insert grade and geometry
Need Solutions？
Every metalworking project has unique requirements. Welcome to consulting with a tooling expert from us to choose the perfect tools for you！
