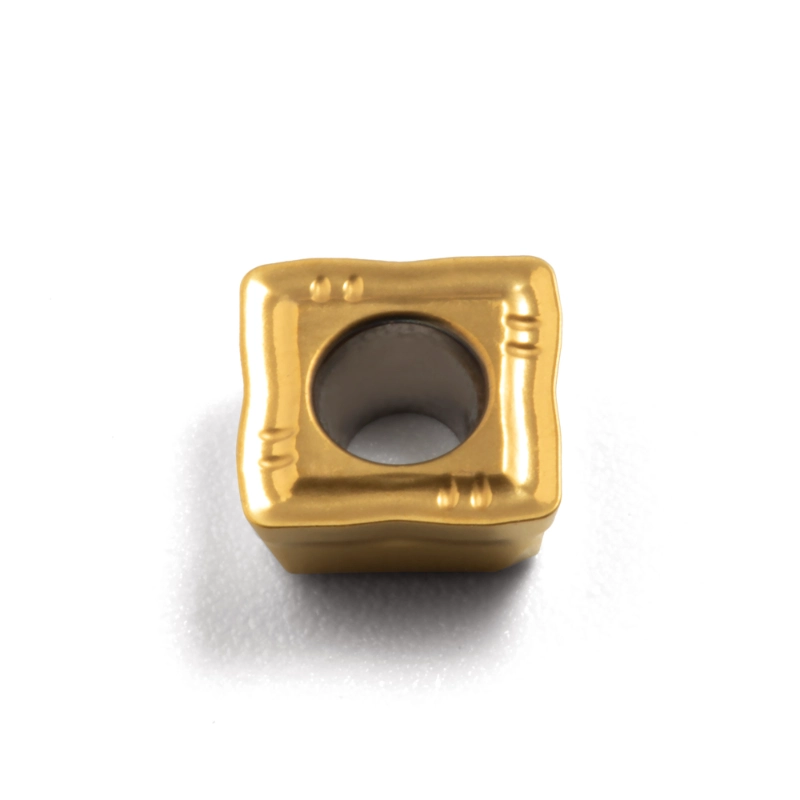

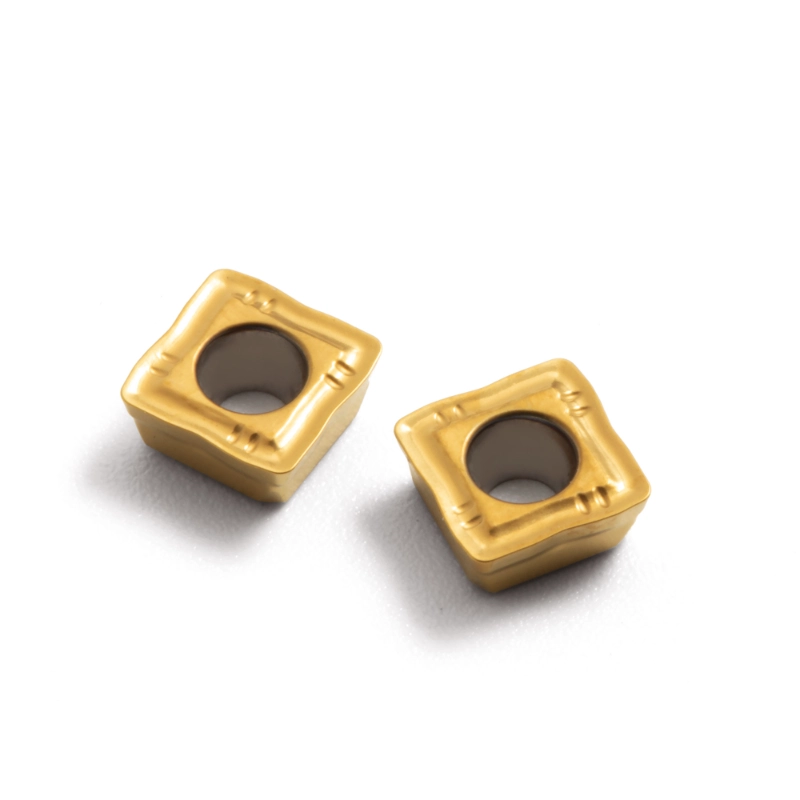

SOMT Face Milling Inserts
SOMT square face milling inserts feature 4 cutting edges for cost efficiency, with complete sizes and corner radii. Special clamping design boosts rigidity & positioning accuracy; optimized chip groove delivers smooth cutting and chip evacuation. Two yellow PVD coated grades P20 and P20A are available. P20A adopts ultra-fine TiAlN nano coating with rare elements for superior heat & wear resistance, while P20 suits semi-finishing & finishing of stainless steel. They perform well on steel, stainless steel, cast iron and light interrupted cuts. A 5-point selection guide and professional tool consultation are offered.
1. 4 cutting edges for cost-efficient milling
2. Reinforced clamping for high positioning accuracy
3. Optimized groove for smooth chip removal
4. Two premium yellow PVD coating grades
5. P20A nano coating: wear & heat resistant
6. Sharp edge with stress-free pre-coating treatment
7. Balanced hardness and substrate toughness
8. Ideal for stainless steel semi/finishing
9. Stable performance on light interrupted cuts
10. Customized professional tool matching support
Get Free Quote
P20A shining yellow color
P20-P30, K20-K30, M20-M30
P20A is Ultra-fine TiALN-based nano-coating, adding rare elements for better wear resistance and high temperature resistance, The overall performance is significantly improved.
Thin PVD coating, sharp edge, fine crystal Granular tungsten carbide-based cemented carbide has high hardness and strong toughness.
It has made special surface treatment technology before coating to removes harmful stress while improving the surface finish
P20 shining yellow color
P20-P30, K20-K30, M20-M30
This face milling inserts is PVD coated carbide grade, Use for a variety of stainless steel finishing and semifinishing at medium to cutting speed. When need excellent edge strength and high surface quality, provide the perfect ride cutting. A high heat and shock-resistance. Suitable for light interrupted cuts
Cutting parameters:
P For steel processing:Cutting Speed:VC=160(110-240)
M for stainless steel processing, cutting speed: VC120（80-200） Fz0.12（0.05-0.2）
| Type | Dimension（mm） | ||||
| I.C | S | a | R | Φd | |
| SOMT050204-Z | 4.9 | 2.38 | 15 | 0.4 | 2.2 |
| SOMT060204-Z | 5.7 | 2.4 | 12.5 | 0.4 | 2.6 |
| SOMT070306-Z | 6.8 | 2.8 | 12 | 0.6 | 2.6 |
| SOMT08T306-Z | 7.9 | 3.97 | 11.5 | 0.6 | 2.85 |
| SOMT09T308-Z | 9.25 | 3.97 | 12 | 0.8 | 3.81 |
| SOMT11T308-Z | 11.05 | 3.97 | 12 | 0.8 | 3.81 |
| SOMT130408-Z | 12.8 | 4.4 | 12 | 0.8 | 4.4 |
| SOMT150510-Z | 15 | 4.8 | 12 | 1.0 | 5.4 |
FAQs
How to select the right insert?
–5 key points you need to know when choose the right tool
•Workpiece material and hardness
•Machining operation (roughing, finishing, etc.)
•Desired surface quality
•Cutting conditions (Vc, feed, depth of cut)
•Current insert grade and geometry
