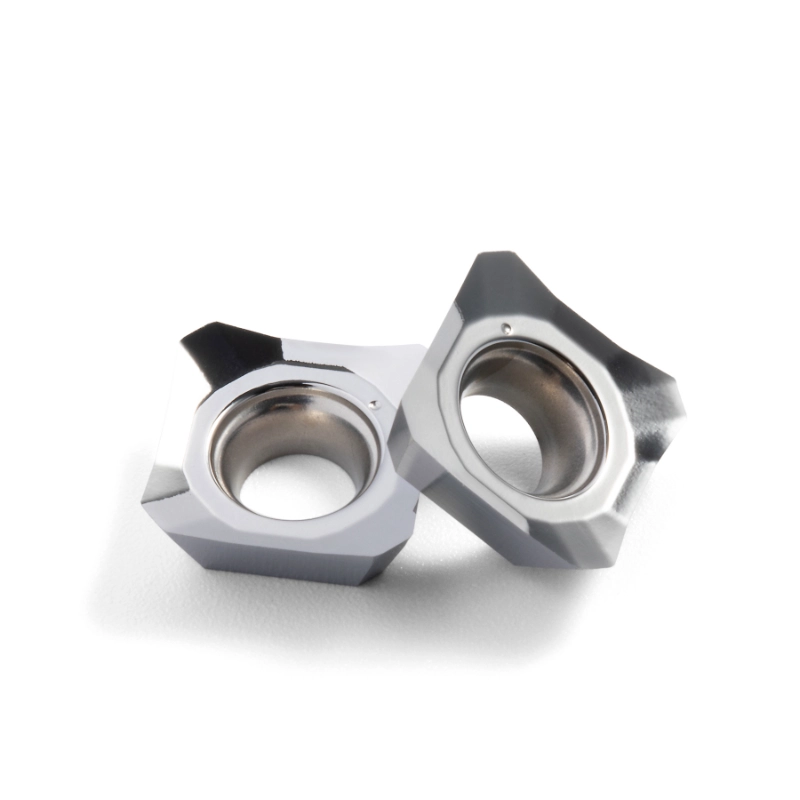

Milling Inserts for Aluminum machining SEKT

SEKT & SEHT uncoated aluminum milling inserts adopt N10 grade, with multiple sizes and corner radii. Precision pressing and Swiss grinding deliver tight tolerance ±0.013mm for length. Mirror polishing eliminates built-up edge, bringing sharp cutting edge, high wear resistance and ultra-smooth finish. Suitable for aluminum, copper, magnesium and plastic, widely used in aerospace, auto parts and precision mold CNC machining. Professional tool selection guidance based on 5 machining factors is available.

Main Advantages：

1. N10 uncoated grade for non-ferrous metal

2. Swiss grinding, ultra-tight dimensional tolerance

3. Mirror polished surface avoids built-up edge

4. Super sharp edge for mirror workpiece finish

5. Outstanding wear resistance for aluminum milling

6. Multiple corner radii match finishing demands

7. Ideal for aerospace & precision mold machining

8. Professional custom tool matching consultation

Get Free Quote

Specifications

Code	Dimension(mm)
Code	L	W	d	s	d1	r
SEKT120404AFFN-LH-2C	–	–	12.70	4.76	5.50	0.40
SEKT1204AFFN-LH-2C	–	–	12.70	4.76	5.50	0.80
SEKT13T3AZFN-LHC	–	–	13.40	3.97	4.40	0.40

Application :

SEKT,SEHT can be used for milling of materials sucha as Aluminum, copper, plastic,magnesium etc.

There are 1 grade for choice, N10. It is an uncoated milling grade.

SEKT inserts adopt surface polishing process to reduce BUE, achieving high smoothness surface quality.
