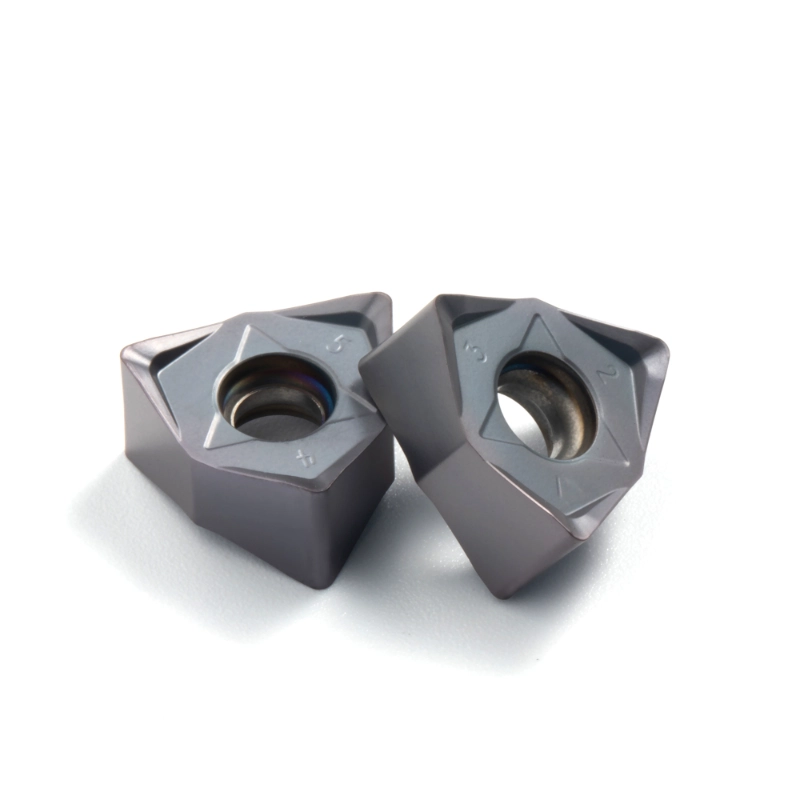

ZNMX Shoulder milling insert
ZNMX080608 triangular shoulder milling insert owns 6 cutting edges for maximum cost efficiency. Three coated grades are provided: CVD P30 for steel, PVD M20 for stainless steel, CVD K30 for cast iron. It machines steel, stainless steel and cast iron, widely applied in aerospace, auto, energy and mold industries. A 5-point selection guide and professional tool consultation are available.
1. 6 cutting edges for ultra cost efficiency
2. Three coating grades for different metals
3. P30 CVD: high-efficiency steel dry milling
4. M20 PVD: stable stainless steel processing
5. K30 CVD: high-feed cast iron machining
6. Fits auto, aerospace & mold manufacturing
7. Clear 5-factor guide for precise selection
8. Custom professional tool matching support
Get Free Quote
Specifications
| Specification | Diameter (d) | Thickness (s) | Diameter of hole （d1） | Corner Radius (r) |
| ZNMX080608 | 12.5 | 6.5 | 4.7 | 0.8 |
Applications
- 1. Suitable for machining steel,stainless steel,cast iron materials.
- Widely used in aerospace, automotive components, energy,die and mould,general engineering industries.
| Available grade | Application recommendations |
| P30 (P15-P30) | ·CVD coated milling grade,1st choice for steel milling.High metal removal rate,achieves high productivity and tool life, dry milling. |
| M20 (M15-M30) | ·PVD coated milling grade. 1st choice for stainless steel. Safety milling in high metal removal condition.Also can be used to most steel and cast iron machining. |
| K30 (K15-K40) | ·CVD coated milling grade.First choice cast iron milling in medium cutting speed and high feed rates condition. |
How to select the right insert?
–5 key points you need to know when choose the right tool
- Work-piece material and hardness
- Machining operation (roughing, finishing, etc.)
- Desired surface quality
- Cutting conditions (Vc, feed, depth of cut)
- Current insert grade and geometry
Need Solutions？
Every metalworking project has unique requirements. Welcome to consulting with a tooling expert from us to choose the perfect tools for you！
