Discover Unparalleled Value with Our Wholesale Modular Tip Indexable Drills

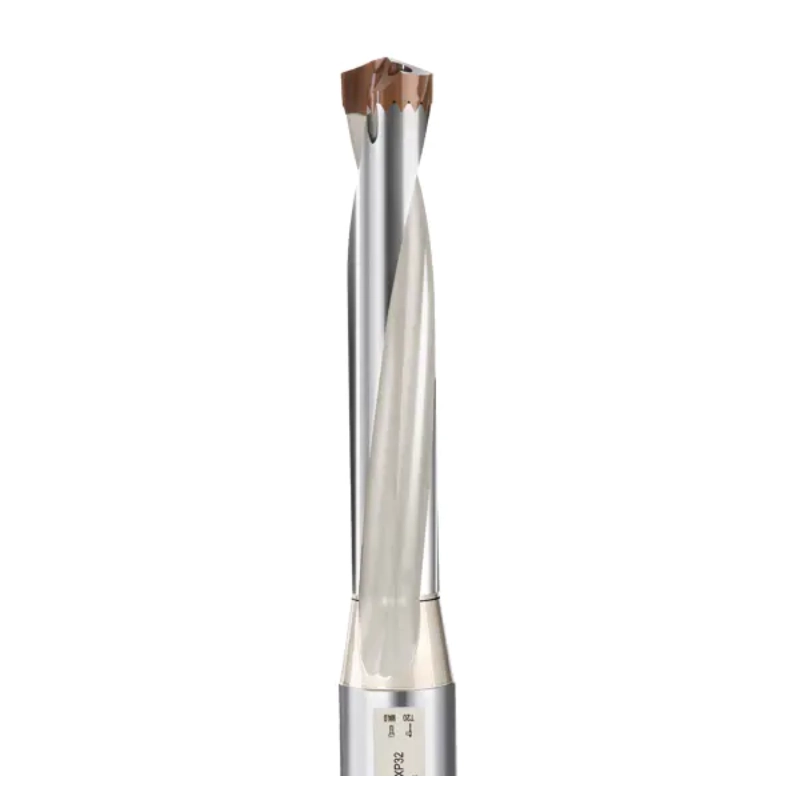

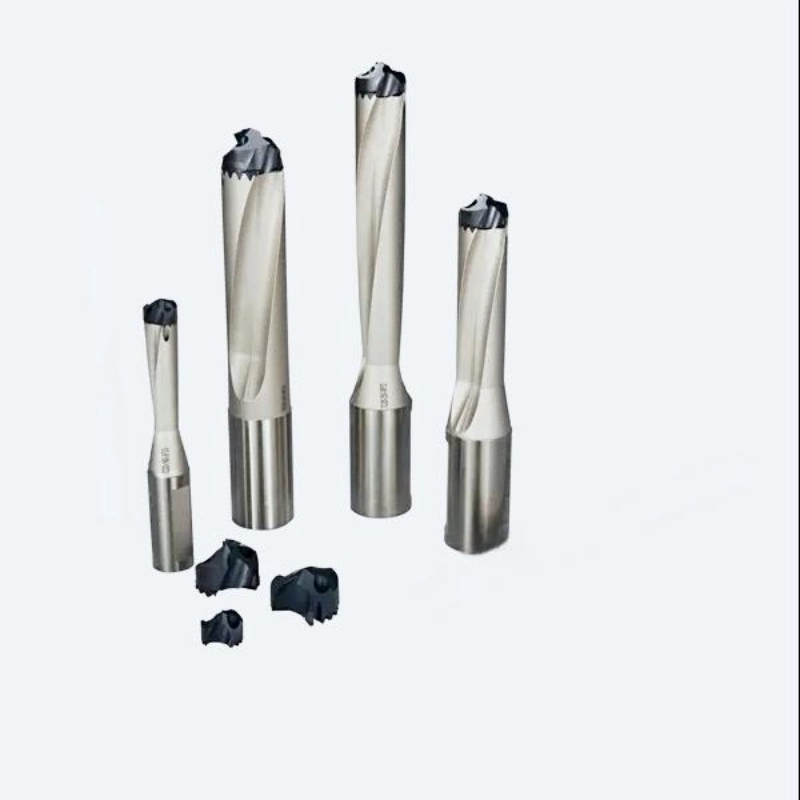

Modular tip drills feature an interchangeable cutting head and reusable drill body for flexible, cost-efficient hole machining. Multiple drill diameters and body lengths are available, with drilling depth options including 1.5D, 3D, 5D and 8D. The modular system allows users to replace the cutting tip without changing the complete drill body, supporting different hole sizes and drilling depths with fewer tool bodies. Production follows ISO 9001 quality management standards for consistent machining performance.
1. Interchangeable modular drill tip
2. Reusable high-rigidity drill body
3. 1.5D, 3D, 5D and 8D depth options
4. Wide range of drilling diameters
5. Multiple drill body sizes available
6. ISO 9001 quality-controlled production
7. Precision machining and grinding capability
8. Custom indexable drill solutions available
Get Free Quote

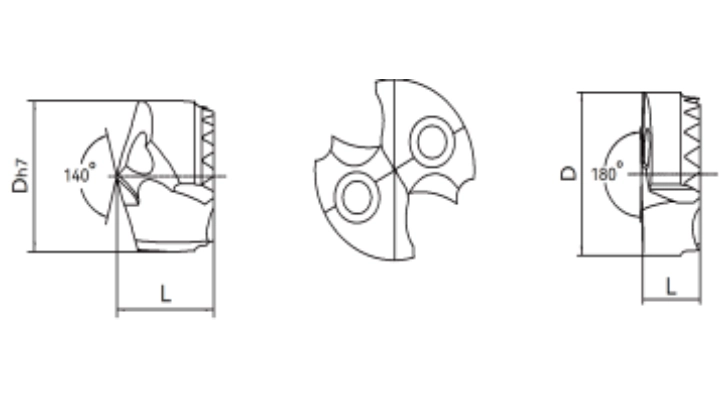

Specifications
| Hole diameter DC | Model | Length（L） |
| 12.00 | TCEA-1200 | 9.10 |
| 12.50 | TCEA-1250 | 9.40 |
| 13.00 | TCEA-1300 | 9.70 |
| 13.50 | TCEA-1350 | 10.30 |
| 14.00 | TCEA-1400 | |
| 14.50 | TCEA-1450 | |
| 15.00 | TCEA-1500 | 11.00 |
| 15.50 | TCEA-1550 | |
| 16.00 | TCEA-1600 | 11.60 |
| 16.50 | TCEA-1650 | |
| 17.00 | TCEA-1700 | 12.30 |
| 17.50 | TCEA-1750 | |
| And more | And more |

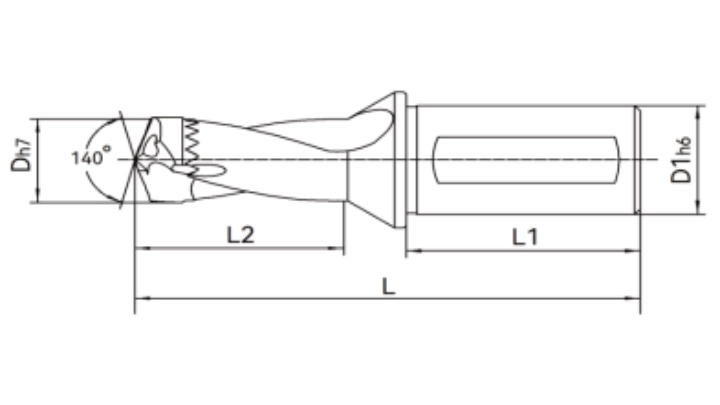

Modular tip drill body（1.5D, 3D, 5D, 8D, etc）
| Interchangeable head diameter range | Specification | L2 | Length | L1 | D1 |
| 12.0-12.49 | 3D-120-XP16 | 46 | 107 | 48 | 16 |
| 12.5-13.49 | 3D-130-XP16 | 49 | 112 | ||
| 13.50-14.5 | 3D-140-XP16 | 55 | 119 | ||
| 14.51-15.5 | 3D-150-XP20 | 58 | 129 | 50 | 20 |
| 15.51-16.5 | 3D-160-XP20 | 62 | 134 | ||
| 16.51-17.5 | 3D-170-XP20 | 66 | 140 | ||
| And more | |||||
| 12.0-12.49 | 5D-120-XP16 | 71 | 132 | 48 | 16 |
| 12.5-13.49 | 5D-130-XP16 | 76 | 142 | ||
| 13.50-14.5 | 5D-140-XP16 | 84 | 149 | ||
| 14.51-15.5 | 5D-150-XP20 | 89 | 159 | 50 | 20 |
| 15.51-16.5 | 5D-160-XP20 | 95 | 169 | ||
| 16.51-17.5 | 5D-170-XP20 | 101 | 175 | ||
| 17.51-18.5 | 5D-180-XP20 | 107 | 180 | ||
| 23.81-24.8 | 5D-240-XP32 | 140 | 225 | 60 | 32 |
| 24.81-25.8 | 5D-250-XP32 | 145 | 230 | ||
| And more | |||||
| 14.51-15.5 | 8D-150-XP20 | 136 | 204 | 50 | 20 |
| 15.51-16.5 | 8D-160-XP20 | 144 | 214 | ||
| 16.51-17.5 | 8D-170-XP20 | 154 | 225 | ||
| 17.51-18.5 | 8D-180-XP20 | 162 | 230 | ||
| And more | 60 | 32 | |||
| 24.81-25.8 | 8D-250-XP32 | 222 | 305 | ||
| 25.81-26.8 | 8D-260-XP32 | 230 | 315 | ||
| 26.81-27.8 | 8D-270-XP32 | 239 | 325 | ||
| 27.81-28.8 | 8D-280-XP32 | 247 | 330 | ||
| 28.81-29.8 | 8D-290-XP32 | 256 | 340 | ||
| 29.81-30.8 | 8D-300-XP32 | 265 | 351 | ||
| 30.81-32.0 | 8D-320-XP32 | 276 | 361 | ||
| 32.01-33.5 | 8D-330-XP32 | 291 | 376 |
Why choose us？Your Attractive Heading
- Equipped with an impressive array of HAAS machining centers, state – of – the – art five – axis grinding centers, and advanced special inspecting instruments, we have the cutting – edge technology to produce drills of the highest caliber.
- Our expertise doesn’t stop there. As the pioneers in formalizing the industry standards for modular tip drills and deep hole drills, we’re at the forefront of innovation.
- With invention patents and numerous utility patents under our belt, we’re not only shaping the future of the cutting tools industry but also bringing you products that are ahead of the curve.

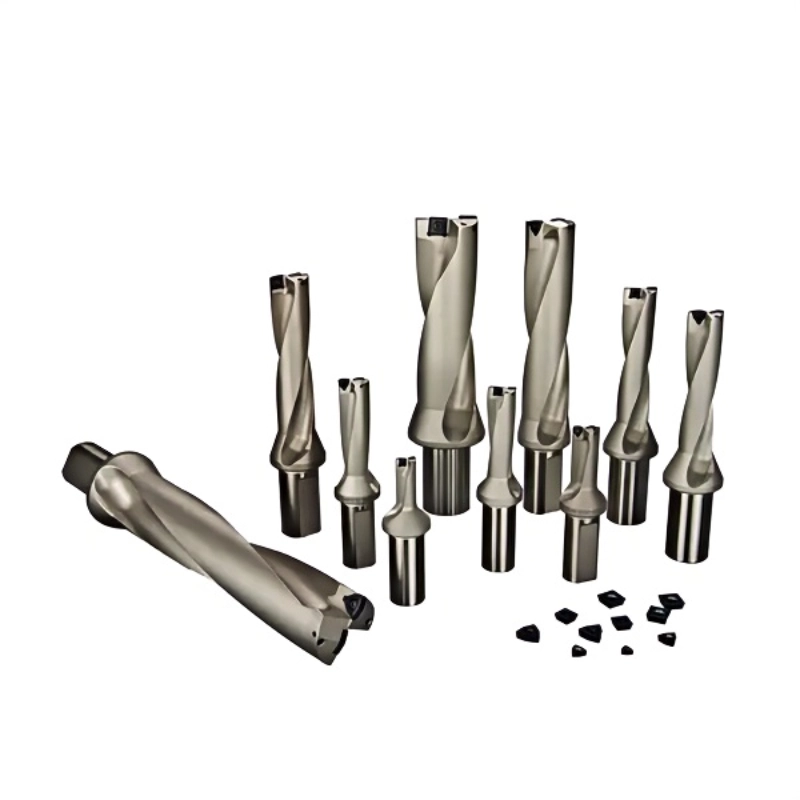

- Most kinds of diameter of the modular tip drills and U drills, and spade drills for choice.
When you partner with us, you’re not just getting a product; you’re getting access to a wealth of innovation, quality – assured manufacturing, and industry – leading expertise. Let our indexable drills transform your operations, delivering consistent, high – performance results that will set you apart in your market
FAQ:
Q1:What is the minimum order quantity for customized indexable drills?
A: Just 1pcs is ok, but ofcourse beter quantity can get better price!
Q2: How long does it take to produce customized indexable drills?
A:1-2 weeks
Q3: Can I get a sample of the customized indexable drills before placing a large order?
A:Sure, we can produce according to your requirements
Q4: How do you guarantee the quality?
A:100% inspection rate before shipment, chell all the sizes and materials
