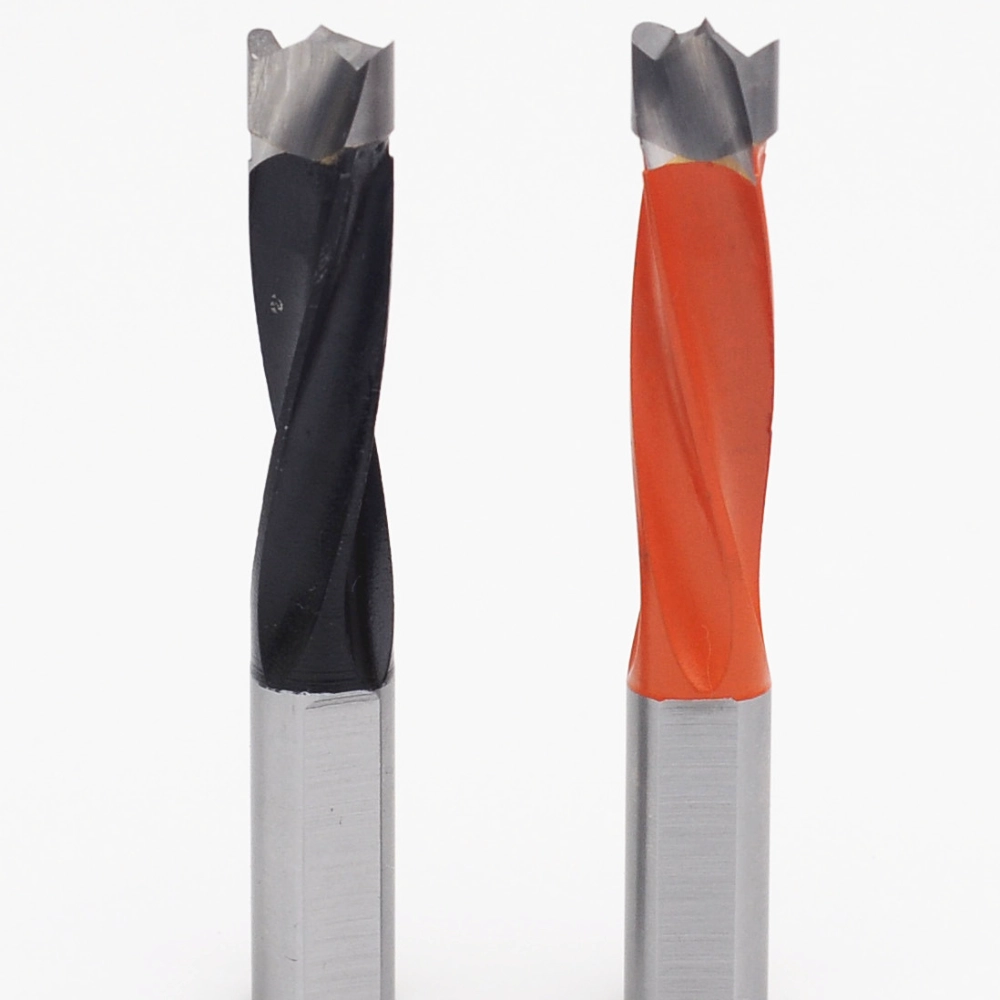

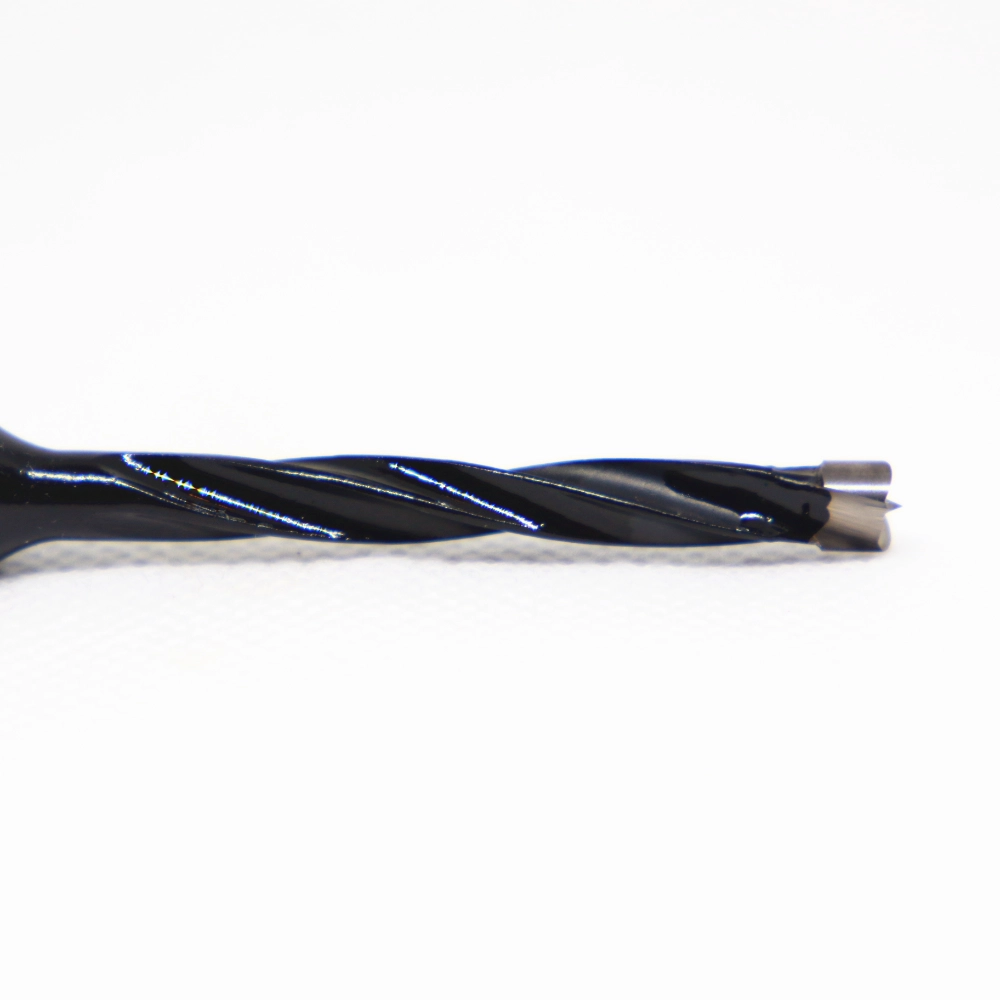

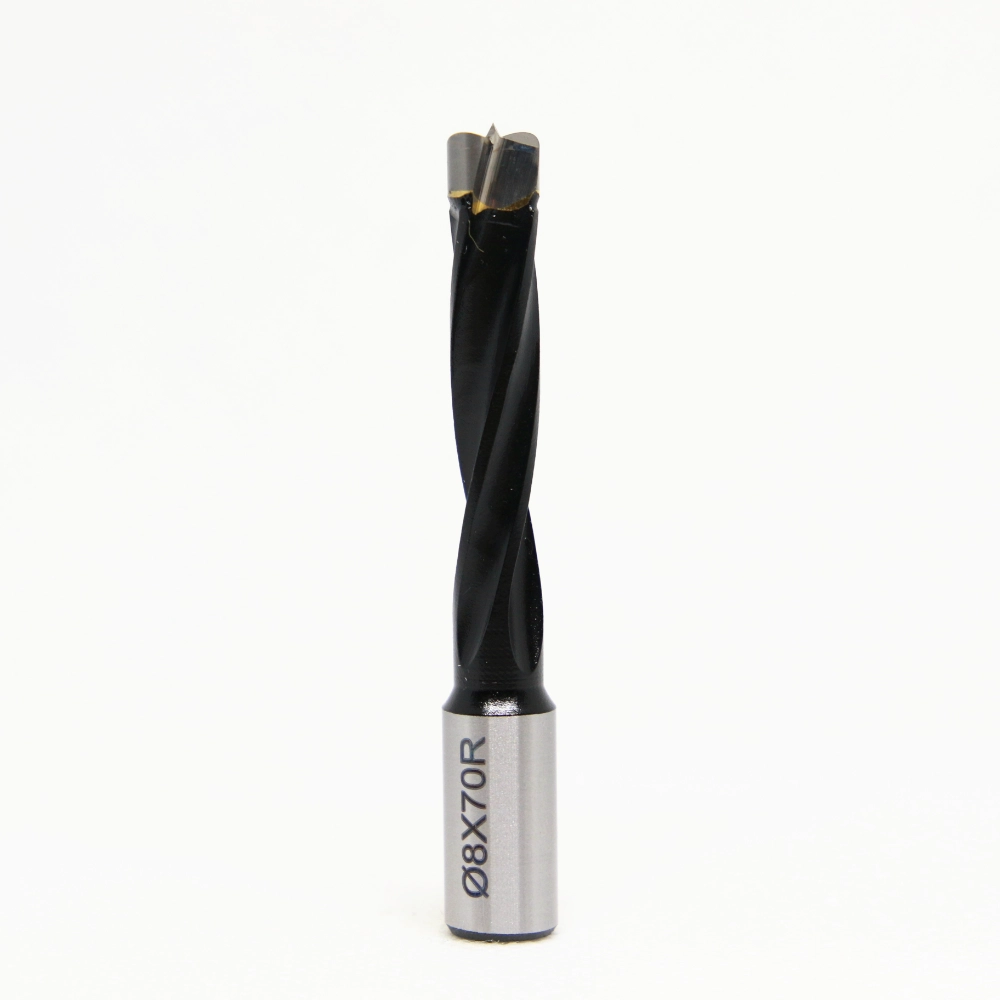

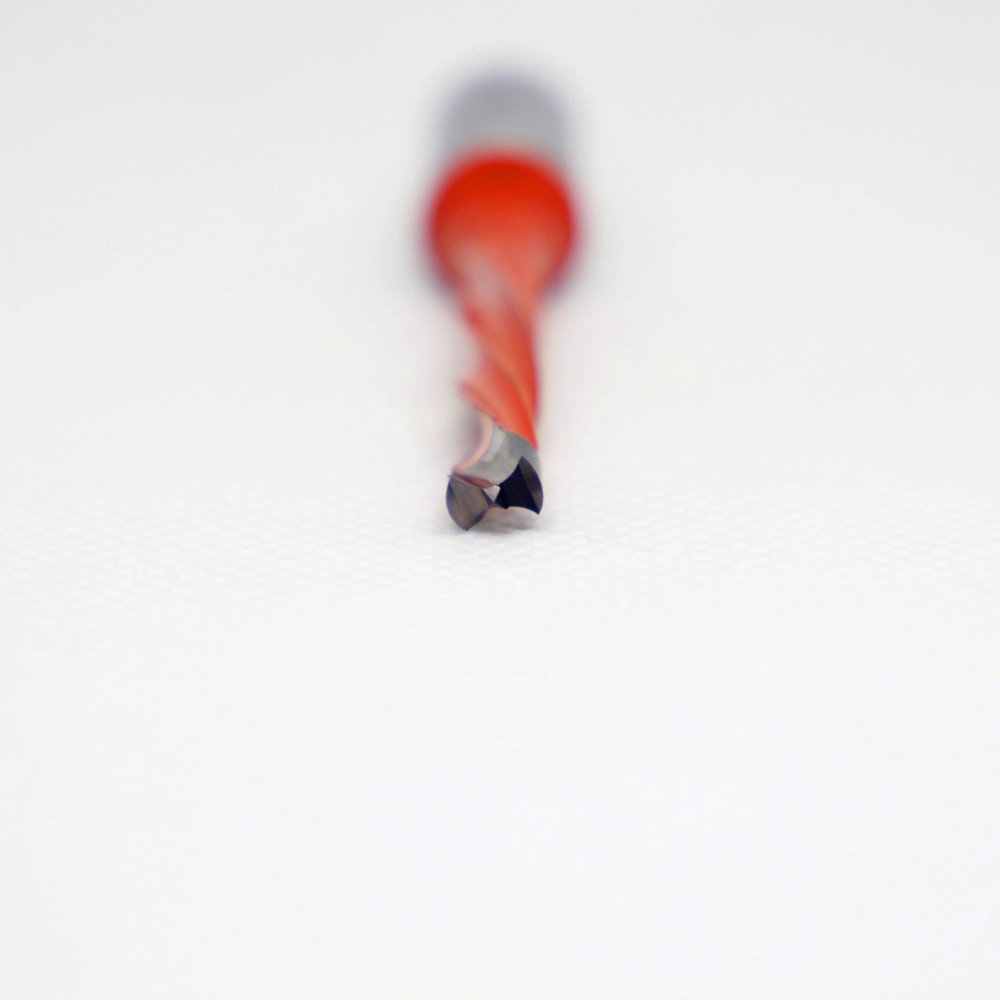

Tct Hinge Boring Bits

These carbide inserts and knives are made from high-quality virgin carbide alloy for industrial woodworking applications. Precision-ground cutting edges provide stable cutting performance, high dimensional accuracy, and extended service life. They are suitable for use with spiral planer cutter blocks in woodworking production.

Main Advantages：

1. Delivery time is 10-25bdays

2. Free samples can be provided for testing.

The carbide inserts and knives are made from high quality virgin carbide alloy for Industrial use. It can be fit on spiral planer cutter blocks in woodworking process. It has high precision ground and can provide longer lifetime.

Get Free Quote

Specifications

tool code right hand	tool code left hand	D(MM)	b(MM)	d(MM)	L(MM)
HH05715R	HH05715L	15	27	10	57.5
HH05716R	HH05716L	16	27	10	57.5
HH05718R	HH05718L	18	27	10	57.5
HH05720R	HH05720L	20	27	10	57.5
HH05725R	HH05725L	25	27	10	57.5
HH05726R	HH05726L	26	27	10	57.5
HH05728R	HH05728L	28	27	10	57.5
HH05730R	HH05730L	30	27	10	57.5
HH05732R	HH05732L	32	27	10	57.5
HH05735R	HH05735L	35	27	10	57.5
HH05738R	HH05738L	38	27	10	57.5
HH05740R	HH05740L	40	27	10	57.5
HH05745R	HH05745L	45	27	10	57.5

tool code right hand	tool code left hand	D(MM)	b(MM)	d(MM)	L(MM)
HH07015R	HH07015L	15	40	10	70
HH07016R	HH07016L	16	40	10	70
HH07018R	HH07018L	18	40	10	70
HH07020R	HH07020L	20	40	10	70
HH07025R	HH07025L	25	40	10	70
HH07026R	HH07026L	26	40	10	70
HH07028R	HH07028L	28	40	10	70
HH07030R	HH07030L	30	40	10	70
HH07032R	HH07032L	32	40	10	70
HH07035R	HH07035L	35	40	10	70
HH07038R	HH07038L	38	40	10	70
HH07040R	HH07040L	40	40	10	70
HH07045R	HH07045L	45	40	10	70

Other Length and Diameter can be produced, too

Application:

The TCT hinge boring bits mostly work on the furniture in WOOD, MDF,etc materials. We can also provide spare parts like adaptor, screws, countersink and other tools.

Maintenance of woodworking drill bit

1. When using a drill, take it out of the box and install it into the collet chuck of the spindle or the tool magazine for automatic drill replacement. Put it back in the box after use.

2. To measure the diameter of the industrial woodworking drill bit, use a non-contact measuring tools to prevent the cutting edge from contacting with the mechanical measuring instrument and being injured.

3. In order to ensure the service life of your woodworking drill and reduce failures, we must regularly check whether the lubricating oil on the woodworking drill is enough or not. If there is a shortage, please fill it in time.

4. Daily attention should be paid to removing sawdust and dust on the guide rails, sliding seats and guide rails of the vertical box, and the guide rails should be cleaned and lubricated before moving each time. Check the oil level of the two parts daily.
